A rotary
union / swivel joint is
a mechanism used to transfer liquids and/or gases while
rotating / swiveling from one connection to another. Rotary
unions are engineered to
endure a large range of temperature and pressure for a
variety of conditions and environments. In addition, rotary
unions may integrate
multiple passages and handle different types of media
concurrently. |
|
|
|
Rotary unions function
by connecting to an input and securing onto another
mechanism while allowing a moving connection to be
preserved. They are utilized in a variety of applications;
from miniature rotary unions for
the semiconductor industry to large, heavy-duty rotary
unions for industrial
applications. Additionally, numerous materials, seals, and
bearing types can be incorporated. |
|
| |
|
 |

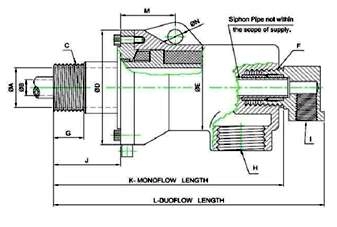

Double ball bearings, balanced face sealing. lapped to optical, flatness,
secondary sealing of Nitrite / Viton / PTFE. Available
in MONO FLOW, DUO FLOW with fixed siphon and rotating
siphon.
Max - RPM 1500 Max: Pr. 35 Kg/cm2
Max - temperature 100 oC Media-Water. |
|
|
| |
|
 |

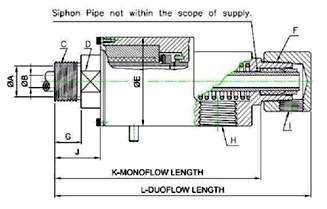

Rotor resting between one
ball bearing and carbon graphite
bush bearing
enabling thermal expansion. Balanced face seal lapped to
optical flatness, available in MONO FLOW. DUO FLOW with
fixed siphon and rotating siphon.
Max.-RPM 1500 Max:Pr.17Kg/CM2
Max temperature 160 oC
Media- Water, Steam and Thermic Fluid. |
|
|
| |
|
 |

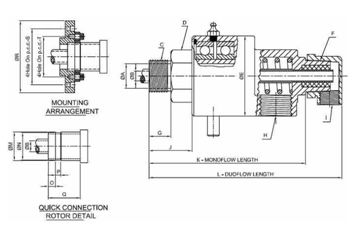

Rotary Pressure Joint
with best quality carbon graphite guide bush and sealing
ring, Rotor one piece carbon steel Available in MONO
FLOW, DUO FLOW with fixed siphon or rotating siphon
Max - RPM 600 Max Pr.17 Kg/cm2
Max - toC 350o Media- steam |
|
|
| |
|
 |

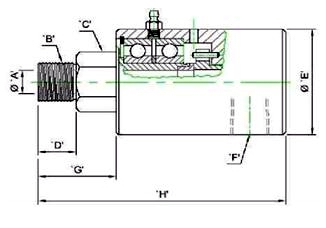

High Temperature. Rotor and Outer body made of temperature resisting
Steels. Optically flat lapped Tungsten Carbide seals are
held by 99.99% pure graphite bushing to withstand very
high temperature of Thermic Fluids.
Max RPM: 250
Max Temp.: 350° C
Max Pr. 5 kg/cm2 |
|
|
| |
|
|
|
|
|
THE MANUFACTURING RANGE |
|
Rotary joints for paper,
rubber, textile mills machine tools, CNC machines •
Hydraulic rotary joints for coiling decoiling, rotary
coupling for water air coolent vacuum thermic fluid
glycol• Rotary joint from 1/8 inch to 16 inches •
Rotary joint from 2 to 16 ports • Rotary couplings for
automobile centralized inflation and deflation systems •
Rotary joint for SPM's • Rotary cylinders for steel
plants - for continuous casting plants • Rotary joints
for tire manufacturing • Rotary joint for mould cooling
• Rotary joints for SPM's • Rotating for
materializing -HDPE bags • Rotary cylinders for turbines
- power houses • Cement plants • 5000 models of rotary
joint - fluid
couplings - rotary connectors with leak less mechanical
seals • Rotating joints in aluminum, brass, cast iron,
stainless steel, SG Iron, Gun metal, we can made as your order. • |
|
|
