P.T.F.E. PRODUCTS

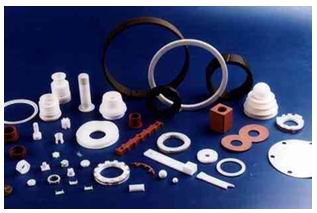

TISTAM offer P.T.F.E raw materials as customers need in all sizes and types , Also we can offer supply  other P.T.F.E product  made from excellent raw material to precisely determined such as P.T.F.E Sheet, P.T.F.E Rod, P.T.F.E Tube, Teflon Tape, P.T.F.E Gasket, P.T.F.E Coated Fabric, P.T.F.E Diaphragms, P.T.F.E Bearing slide, P.T.F.E Packing and P.T.F.E O-rings.




General properties of P.T.F.E. :

The properties of P.T.F.E (C2 F4)n, goes this material superior than all other plastics, recommending its uses  in many different applications precluded to other materials, the most outstanding of these characteristics are:

·         Extremely high chemical inertness.

·         Extremely heat and cold resistance.

·         Extremely dielectric properties.

·         No hygroscopicity and high resistance to solvents.

·         Excellent ageing resistance.

·         Good sled-lubrication and anti-stick properties.



Chemical characteristics:

P.T.F.E. possesses a high inertness towards all known chemicals, and is insoluble in all solvents up to temperatures as high as 300C (572F).



MECHANICAL PROPERTIES:

Generally speaking, P.T.F.E. is a flexible material, endowed with fair tensile strength and high elongation at break.

The outstanding characteristics of P.T.F.E., among all polymeric materials, is represented by the wide temperature range (+200°C -200°C) over which its mechanical properties remain unaltered.


ELECTRICAL PROPERTIES:

P.T.F.E. possesses exceptional and constant electrical properties during temperatures range from 100°C up to 300°C and at frequencies up to 10 cycles.



RESISTANCE TO AGEING AND WEATHERING:

P.T.F.E. thanks its high chemical stability, stands up well to aging effects, in long term aging tests, the sample exposed to different weathering conditions for years showed no weight loss.



THERMAL PROPERTIES:

P.T.F.E. is to be considered a thermal insulate having a low thermal transmission coefficient

.PHYSICAL AND OPTICAL CHARACTERISTICS:

Parts fabricated with P.T.F.E. are opaque and white.

.PROPERTIES OF FILLED P.T.F.E. to modify P.T.F.E. Characteristics it is necessary to fill the powder with:Glass fiber – carbon – graphite molybdenum –bronze metal oxides –ceramics- etc..

The following table shows the way each filler affects physical and mechanical properties.

combinations of two or more fillers (not considered in the table) allow a large number of compounds. thus the resulting combined properties offer a variety of applications.

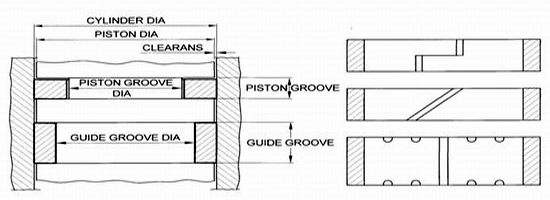

DESIGN: PTFE Compound Piston Rings used for Compressors gas and air.

MATERIAL G 403 PTFE with GLASS.

                   G 443 PTFE with GRAPHITE.

                    G 453 PTFE with CARBON GRAPHITE.

                    Available special compound suitable for your application.

SEGEMENTS Ring for Piston Rod

MATERIAL PTFE compound or CARBON GRAPHITE



Filler Property Most common application
Glass Enhanced wear resistance.
Enhanced chemical resistance
(except for alkali and hydrofluoric acid)
Valve seats, seal, bearings, requested to resist sliding and chemicals.
Suitable for bearings working at low PV values.
Graphite Extremely low coefficient of friction.
Fairly good compressive strength.
Good wear resistance.
Bearings for high speed on fairly hard surface.
Carbon Good thermal conductivity.
Good resistance to deformation.
Valve seats.
Bearings for high speed and when fast dissipation of electric charges is needed.
Elastic bands for unduplicated compressors.
Molybdenum disulphide Enhanced non-stick properties.
Low static coefficient of friction.
Fairly good resistance to deformation.
Guide bands.
Details needing good resistivity.
Bronze Enhanced compressive strength.
Good wear resistance and high thermal conductivity.
Anti-extrusion rings.
Unlubricated bearings for high speed on not hard surface.
