API 682

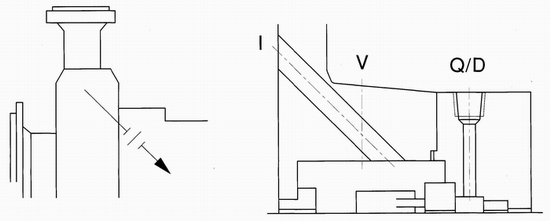

Plan 01
Integral (Internal) recirculation from pump discharge to seal

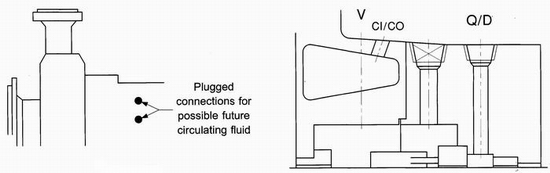

Plan 02
Dead-ended seal chamber with no circulation of flushed fluid; water - cooled stuffing - box jacket ant throat bushing required when specilied

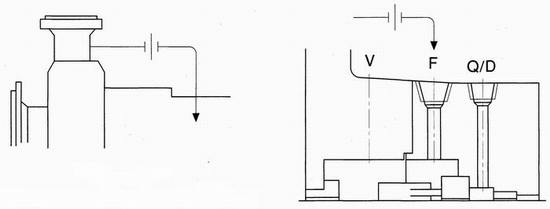

Plan 11
Recirculation from pump case through orifice and heat exchanger  to seal

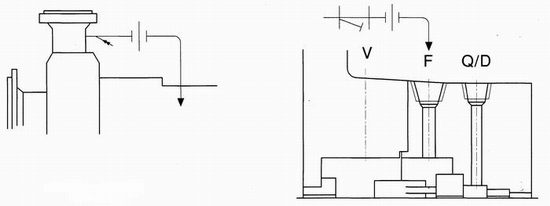

Plan 12
Recirculation from pump case through strainer and  orifice to seal

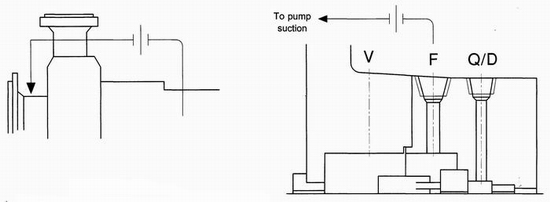

Plan 13
Recirculation from seal chamber through orifice and back to pump suction

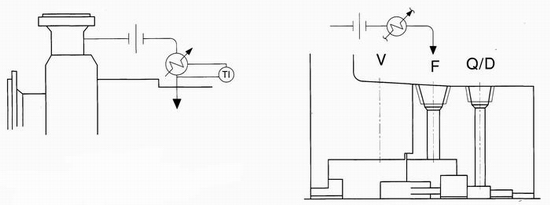

Plan 21
Recirculation from pump case through orifice to seal

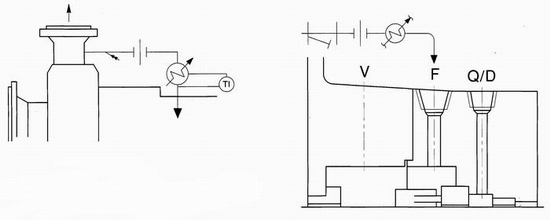

Plan 22
Recirculation from pump case through strainer, orifice and heat exchanger  to seal

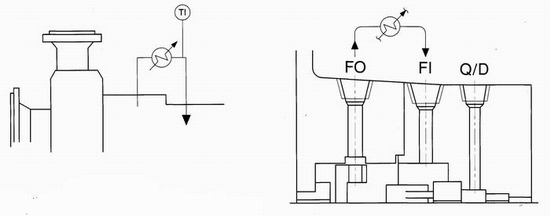

Plan 23
Recirculation from seal with  pumping ring through heat exchanger and back   to seal

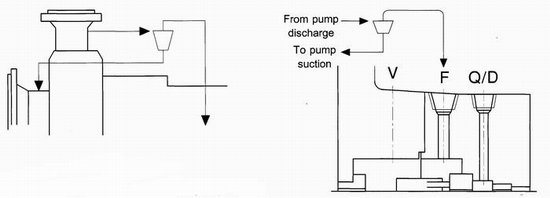

Plan 31
Recirculation from pump case through cyclone separator delivering clean fluid to seal fluid with solids back to pump suction

Plan 32
Injection to seal from external source of clean fluid

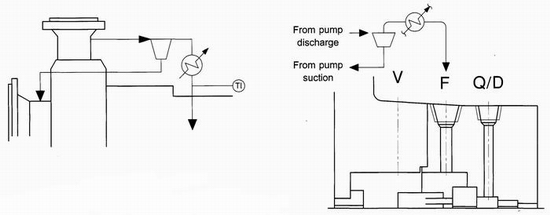

Plan 41
Recirculation from pump case through cyclone separator delivering clean fluid through heat exchanger to seal and fluid with solids back to pump suction

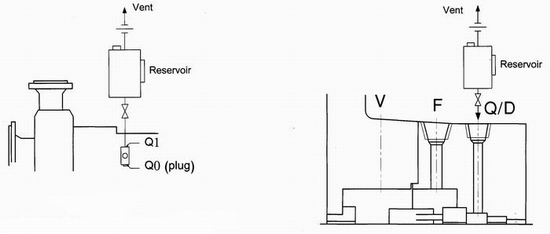

Plan 51
Dead-ended blanket typically used with auxiliary sealing device

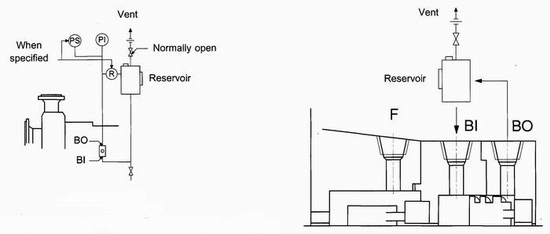

Plan 52
Non-pressurized external fluid reservoir with forced circulation (typically used with dual seal)

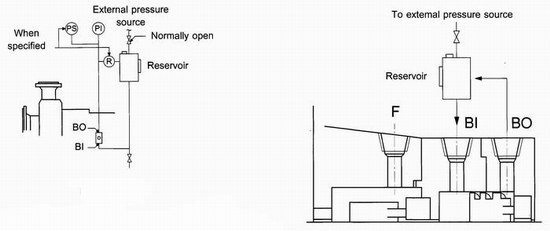

Plan 53
Pressurized external fluid reservoir with forced circulation (typically used with dual seal)

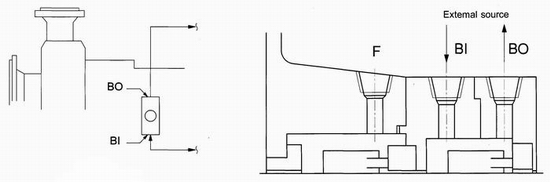

Plan 54
Circulation of clean fluid from external system (typically used with dual seal arrangement 3)

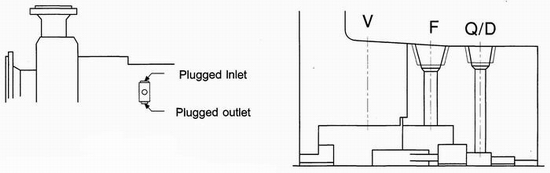

Plan 61
Tapped connection provided for purchaser's use  (typically used to provide fluid such as steam, gas, or water to an auxiliary sealing device)

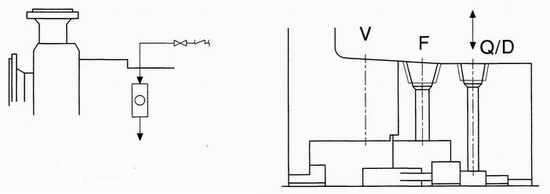

Plan 62
External fluid quench (steam, gas, water, etc.) typically used with throttle bushing
