Type XT1

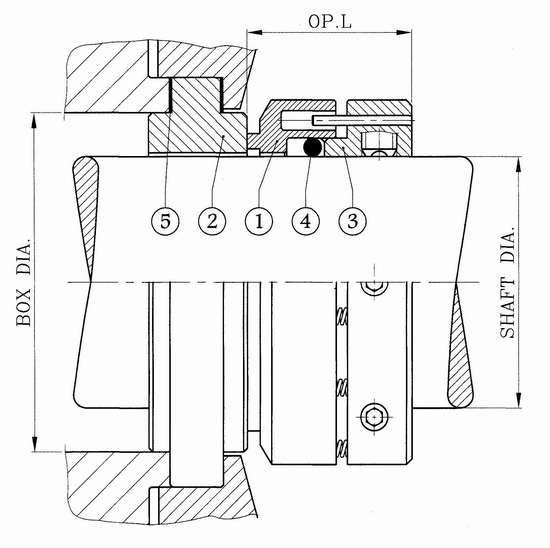

Available Materials

1- Rotary seal ring      : SIC, TC, Carbon - Stellite

2- Mating ring T type  : AL 203 - SIC

3- Rotary seal drive    : 316 Haste Alloy C

4- O - ring                    : Teflon - Viton - EPDM

5- Gaskets                   : Teflon

This deasing for external mounting on extremely mounted corrosive duties including acids, salts and organic compounds Multi spring hydraulically balanced rotating seal

Description:

 Primary elastomers: O-ring, V-ring or U-ring is available

Operating conditions

Temperature:  from 45 C up to + 150 C

Pressure       :   up to 15 bar

Speed           :  3000  RPM

Sealing faces: carbon, silicon carbide or tungsten carbide is available
