ANTI CREEPING SEAL


AC - SEAL advantages



- Maximum sealing surface speed to    45m/sec

- Excellent chemical resistance

- Low friction loss and wear resistant

- Applicable in pressure and vacuum

- Temperature to 250 °C

- Good dry running capability*




S1

B

H1

H

r

25

bar

10

bar

5

bar

0.2

0.5

2.2

8

10

8

Up to 19

0.2

0.5

2.5

10

12.5

11

20 – 64

0.2

0.5

3.0

10

15

14

65– 119

0.2

0.5

3.0

12

17

15

120 – 199

0.2

0.5

3.0

15

20

17.5

200 – 299

0.2

0.5

3.0

20

25

20

300 - 450


Ordering example for shaft - ∅ 100mm and

Max. 10 bar: TISTAM AC- SEAL Special, 100x128x10; 10 bar Ordering example

With O-ring: TISTAM AC - SEAL Special,

100 x 130 x 10; 10bar with O-ring

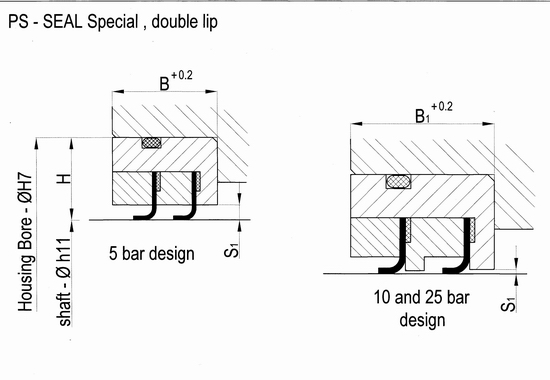

S1

B1

B

H

Shaft

Diameter

25

bar

10

bar

5

bar

0.2

0.5

2.2

16

14

10

Up to 19

0.2

0.5

2.5

19

17

12.5

20 – 64

0.2

0.5

3.0

20

18

15

65– 119

0.2

0.5

3.0

24

20

17

120– 199

0.2

0.5

3.0

26

23

20

200– 299

0.2

0.5

3.0

30

25

25

300 - 450

S1

B

H

Shaft

Diameter

25

bar

10

bar

5

bar

0.2

0.5

2.2

12

10

Up to 19

0.2

0.5

2.5

15

12.5

20 – 64

0.2

0.5

3.0

17

15

65– 119

0.2

0.5

3.0

20

17

120– 199

0.2

0.5

3.0

24

20

200– 299

0.2

0.5

3.0

25

25

300 - 450

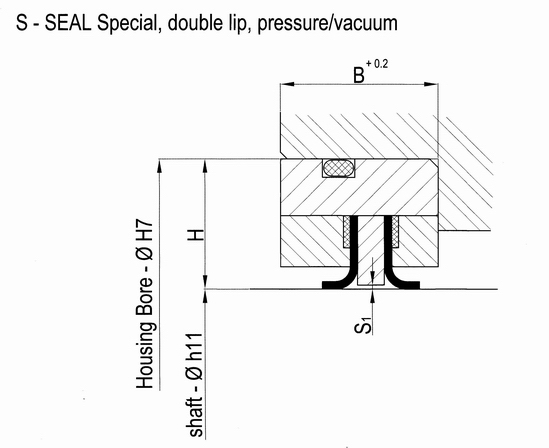

Ordering example for shaft - ∅ 100mm and Max. 10 bar: TISTAM AC - SEAL Special, double Ordering example for shaft - ∅ 100mm and Pressure / vacuum;

Max. 10 bar: TISTAM  AC - SEAL Special, double lip,

100 x 130 x 17; 10bar with O-ring
