The AC
– SEAL lip set includes a CREEPING lip element plus a Vinton
static sealing element. AC
– SEAL lips are available in any accordance with the AC
-SEAL lip engineering data listing. AC
– SEAL lips are widely used when a size does not fit our
AC
– SEAL standard size rang and where pressures above 10 bar
are encountered.

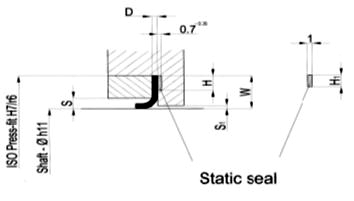

S1
S
H1
H
D
W
Shaft
Diameter
25
bar
10
bar
5
bar
0.2
0.5
2.0
2.0
2.0
2.5
0.8
6
Up to 19
0.2
0.5
2.5
2.5
2.5
3.5
0.8
7.5
20 – 49
0.2
0.5
3.0
3.0
3.5
4.5
1.0
10
50 – 149
0.2
0.5
3.0
3.0
4.5
6.0
1.0
12.5
150 – 299
0.2
0.5
3.0
3.0
6.0
8.0
1.0
15
300 - 450
Ordering example for shaft - ∅ 100mm: TISTAM
AC - SEAL lip 100x120x1.0
