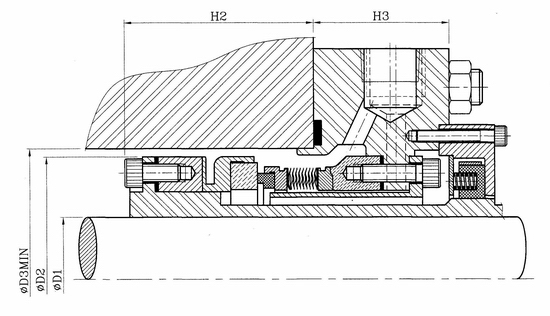

Hydraulically balanced seal. Allows the seal to handle more pressure without generating excessive heat at the faces.

All metal parts are designed to handle elevated temperatures without any adverse effects.

Heat treated AM350 or Inconel 718 bellows. Low expansion stainless seal face retainer and 316SS other parts (other special material options are available).

Static shaft Grafoil packing, Even 360 degree face loading for higher pressure applications double ply bellows are available

Cartridge Designs are available and can be API compliant

 API 682 Type C Arrangement 1 available

 Operating Conditions

 Max Temp – 800°F (425°C) Max Pressure – ( 20 bar ) single ply / 60 bar double ply

Shaft Speeds to – 5000 RPM
