Type 591 B

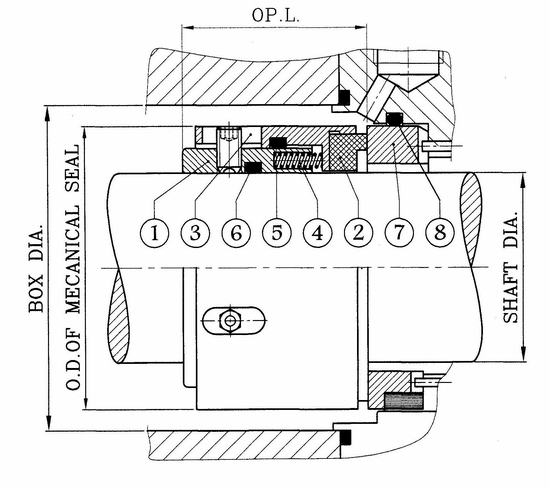

Available Materials

1- Retainer                                    : 316 316 L haste alloy C

2- Rotary seal face                       : SIC, TC, Carbon

3- Rotary shell                               : 316 316 L haste alloy C

4- Springs                                      :  HASTE ALLOY C

5- O - ring                                       : Viton, NBR, EPDM

6- O - ring                                       : Viton, NBR, EPDM

7- Mating ring CS, DA, PB Extra : SIC, TC, Carbon

8- O - ring                                       : Viton, Teflon NBR, EPDM

Description:

Multi spring hydraulically balanced drive pins tang & groove, spring are not contact with fluids according to API 610 - 682

Safe corrosion attack springs

Used for petrochemicals pumps and rotating equipment

Application:

 Pressure      : 35 bar

Temperature:  210 C

Speed           :  3000 RPM

Sealing face: carbon, silicon carbide or tungsten carbide is available
