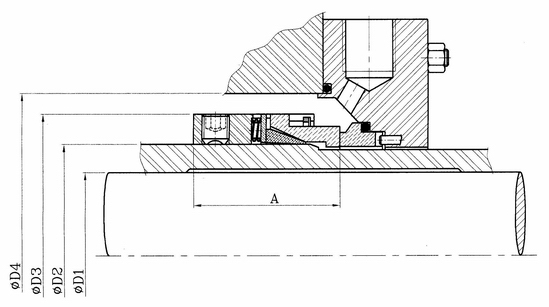

Type 571 B



Multi spring hydraulically balanced mechanical seal, have Teflon wedge seal

Tang & groove drive, for heavy duty work  according to API 610 - 682

Pressure       : UP TO  45 bar

Temperature: UP TO 280° C

Speed            : 300RPM

Avilable Materials

1- Rotary seal face :Silicon carbide, Tungsten carbide, Carbon graphite or Stellite.
2- Mating ring CS, PB, DA extra  :Silicon carbide, Tungsten carbide, Carbon graphite or Stellite.
3- Retainer :316 – 316L – HASTE ALLOY C, monel
4- Springs :HASTE ALLOY C
5- Rotary seal ring packing :Teflon wedge.
6- Seat ring packing :Teflon or O-Ring.
7- Sleeve packing :Teflon or O-Ring.
