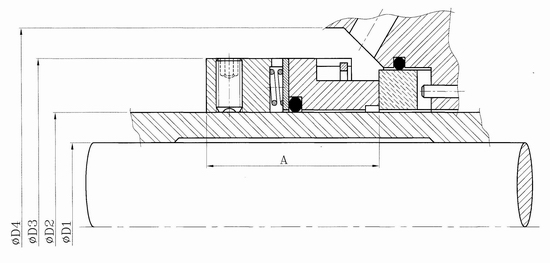

Unbalanced multi
spring mechanical seal with O-Ring packing
- O –
Ring as primary seal
- For
heavy duty applications
-
Operating condition
Pressure : UP
TO 15 bar
Temperature: UP TO
220°
C
Speed
: UP TO 3000 RPM
|
|
|
Avilable
Materials |
|
| |
|
|
1- Rotary seal face |
:Silicon
carbide, Tungsten carbide, Carbon graphite or Stellite. |
|
2- Mating ring CS, PB, DA extra |
:Silicon
carbide, Tungsten carbide, Carbon graphite or Stellite. |
|
3- Retainer |
:316 – 316L – HASTE ALLOY C, monel |
|
4- Springs |
:HASTE ALLOY C |
|
5- Rotary seal ring packing |
:O-Ring. |
|
6- Seat ring packing |
:O-Ring. |
|
7- Sleeve packing |
:O-Ring. |
|
| |
|
