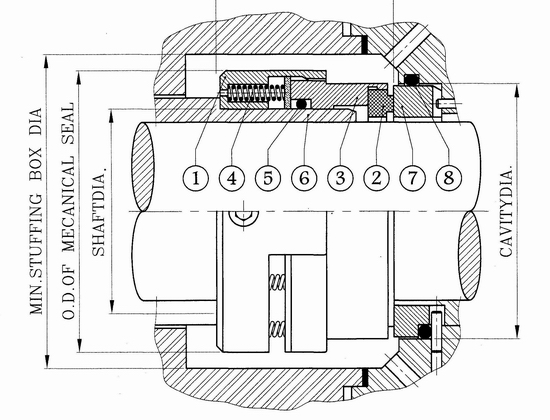

Available Materials

Retainer        : 316 – 316 L – haste alloy C

Rotary face   : SIC, TC, Carbon

Rotary shell   : 316 – 316 L – haste alloy C

Springs          :  HASTE ALLOY C

O - ring           : Viton, NBR, EPDM

Packup ring   : Viton, NBR, EPDM

Mating ring     : SIC, TC, Carbon

Description:

Multi spring hydraulically balanced rotating seal, viton O-ring with tang & groove according API 610 - 682

  Specification:

Pressure        : UP TO  45 bar.

Temperature  : UP TO 220° C

Speed            : UP TO 3000  RPM

Application:

Petrochemicals, refinery, pump. Mixer, agitators and similar equipment

Features: 510 B is suitable for small diameter stuffing boxes. It replaces both type 8B and 8BT seals

Sealing faces: carbon, silicon carbide or tungsten carbide is available
