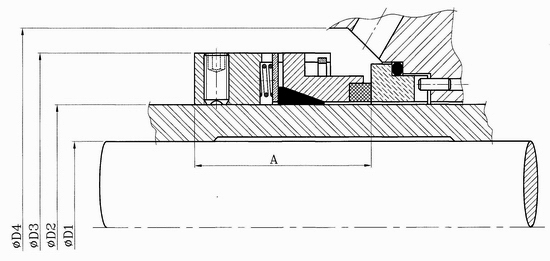

Unbalanced multi spring mechanical seal with teflon
wedge packing for heavy duty application
- Teflon wedge as primary seal
- For heavy duty applications
- Operating condition
Pressure : UP
TO 15 bar
Temperature: -40° C +
280° C
SPEED
: UP TO 3000 RBM
|
|
|
Avilable
Materials |
|
| |
|
|
1- Rotary seal face |
:Silicon
carbide, Tungsten carbide, Carbon graphite or Stellite. |
|
2- Mating ring CS, PB, DA extra |
:Silicon
carbide, Tungsten carbide, Carbon graphite or Stellite. |
|
3- Retainer |
:316 – 316L – HASTE ALLOY C, monel |
|
4- Springs |
:HASTE ALLOY C |
|
5- Rotary seal ring packing |
:Teflon wedge. |
|
6- Seat ring packing |
:Teflon or O-Ring. |
|
7- Sleeve packing |
:Teflon or O-Ring. |
|
| |
|
